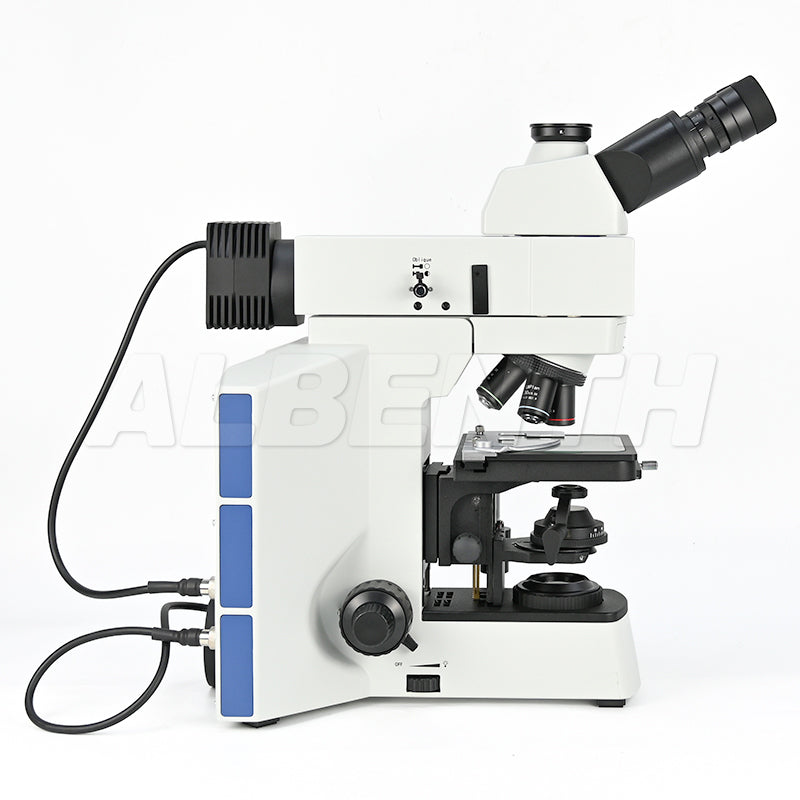

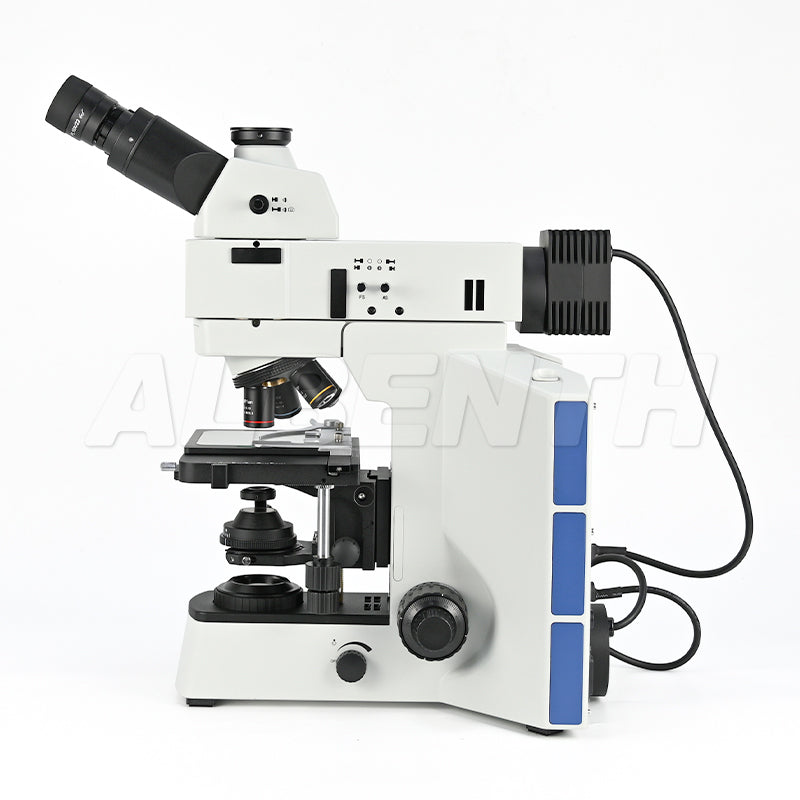

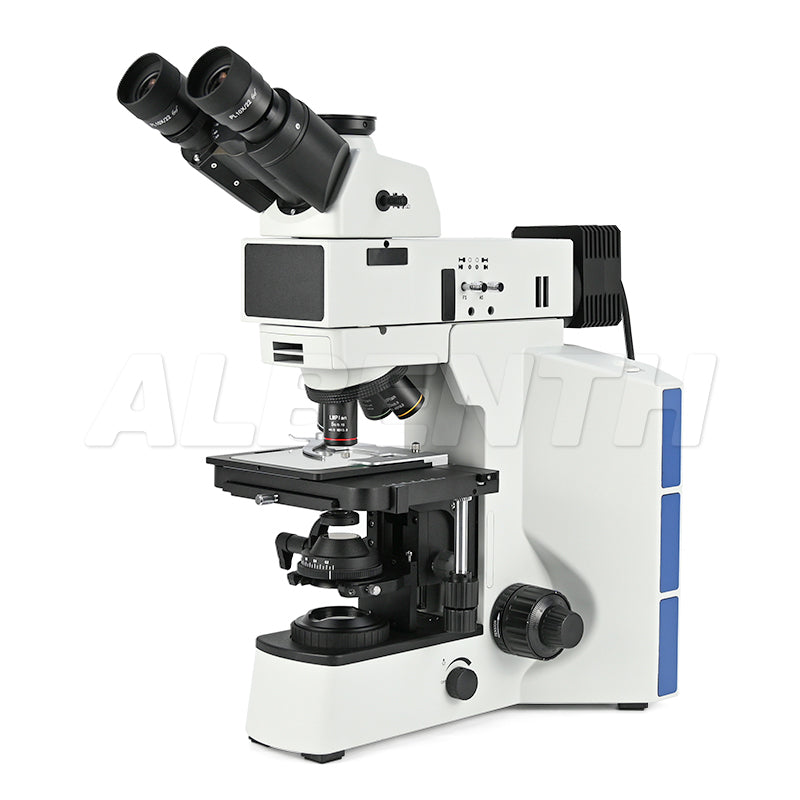

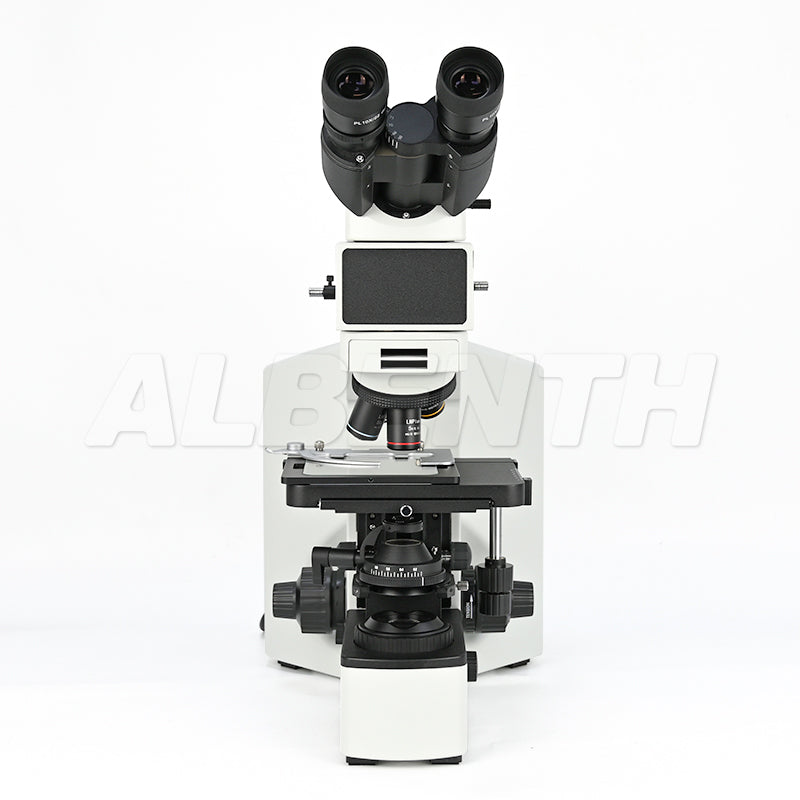

● A compact metallurgical microscope for reflected-light analysis of metals, plastics, and other materials
● Four plan-achromatic objective lenses and two sets of eyepieces provide eight unique magnifications ranging from 40X to 640X
● The infinity-corrected optical system eliminates certain optical errors when using filters and other in-line components, ensuring highly precise images.
● The trinocular head provides a dedicated photo port for adding a camera for recording photos and videos.
Specification:
● Viewing Head: Seidentopf type trinocular head, 30° inclined, interpupillary distance 50-75mm
● Eyepiece: WF10x /18mm
● Infinitive plan achromatic Metallurgical objectives:
4x/0.10/∞/- WD=17.3mm
10x/0.25/∞/- WD=10.0mm
40x/0.60/∞/0 WD=2.90mm
● Nosepiece: Quadruple Nosepiece
● Stage: Double glass layer mechanical stage 150x140mm, travel distance 75x50mm
● Focusing: Coaxial Fine & Coarse Adjustment
● Reflected Illumination: Kohler Illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 6V/20W Halogen Lamp, Brightness Adjustable
● Transmitted Illumination, 6V/20W Halogen lamp, Brightness adjustable
● Filters: Blue, Green, Yellow & Ground Glass
● Power: 100-240VAC 50/60Hz wide-band
Packing List :
1x trinocular microscope head
1x microscope body
1x pairs eyepieces WF10x/18mm
1x infinitive plan achromatic Metallurgical objectives: 4X, 10X, 40X
1x camera adapter
2x halogen bulb 6V/20W
1x filters: Blue, Green, Yellow & Ground Glass
1x dust cover
1x hexagonal wrench
